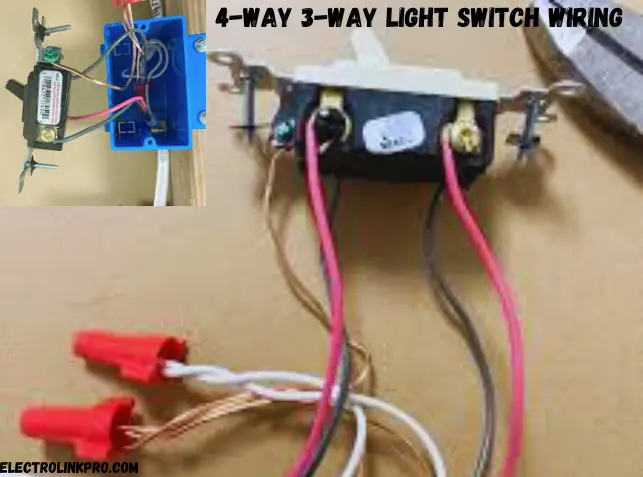

Light switches are essential for controlling lighting in homes, offices, and commercial spaces. A 4-way 3-way light switch wiring setup allows you to control a single light fixture from three or more locations—perfect for large rooms, hallways, or staircases. This guide covers everything you need to know, from wiring diagrams to step-by-step installation.
📌 Key Components for 4-Way 3-Way Light Switch Wiring
| Component | Purpose |
|---|---|
| 3-Way Switches | Start/end the circuit |
| 4-Way Switches | Add intermediate control points |
| 14/3 or 12/3 NM Cable | Carries traveler wires |
| Electrical Boxes | Houses switches safely |
| Light Fixture | The controlled load |
🔌 Wiring Diagrams for 4-Way 3-Way Light Switch Setup
Here are some diagrams for 4-Way 3-Way Light Switch Setup

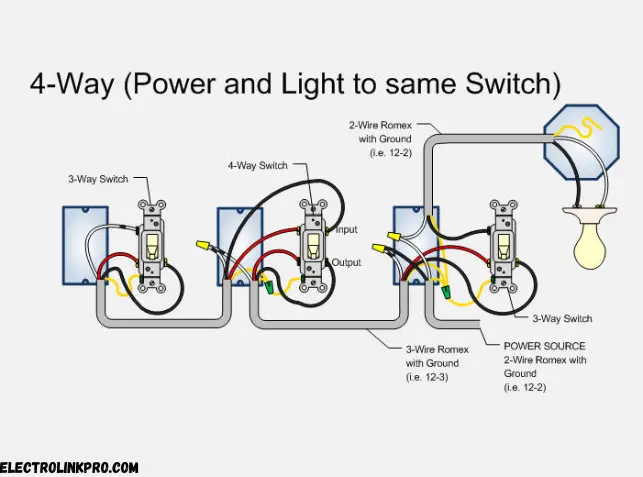

Diagram 1: Basic 4-Way 3-Way Light Switch Wiring
Power Source → 3-Way Switch → 4-Way Switch → 3-Way Switch → Light Fixture Diagram 2: Multiple 4-Way Switches (Extended Control)
Power → 3-Way → 4-Way → 4-Way → 3-Way → Light
⚡ Step-by-Step 4-Way 3-Way Light Switch Wiring Installation
Here is step by step wiring guide for switches
1️⃣ Turn Off Power & Prepare Wiring
- Shut off the circuit breaker.
- Run 14/3 or 12/3 NM cable between switches.
- Ensure proper grounding.
2️⃣ Connect the First 3-Way Switch
- Common terminal → connects to the power source (black wire).
- Traveler terminals → connect to the 4-way switch (red & white wires).
3️⃣ Install the 4-Way Switch
- Connects traveler wires between the two 3-way switches.
- Ensures signal passes through for multi-location control.
4️⃣ Wire the Second 3-Way Switch
- Common terminal → connects to the light fixture.
- Traveler terminals → link back to the 4-way switch.
5️⃣ Test the Circuit
- Restore power and test all switches.
- Verify smooth operation from all locations.
⚠️ Common Mistakes & Troubleshooting
❌ Incorrect Traveler Wire Connections
- Ensure red & white wires are properly linked between switches.
❌ Mixed-Up Common Terminals
- The common terminal (usually darker screw) must connect to power or the light.
❌ Loose Connections
- Tighten all wire nuts and screws to prevent flickering.
✅ Troubleshooting Tips
- Use a voltage tester to verify live wires.
- Double-check wiring against diagrams.
🔎 Alternative Wiring Methods & Advanced Configurations
1. Smart Switches in 4-Way 3-Way Light Switch Wiring
- Replace one 3-way switch with a smart switch for remote control.
2. Dimmer Compatibility
- Use 3-way dimmer switches at one end only.
3. Adding More 4-Way Switches
- Extend control by inserting additional 4-way switches between existing ones.
🏁 Conclusion
Understanding 4-way 3-way light switch wiring is essential for creating flexible, multi-location lighting control in homes, offices, and large spaces. By following the correct wiring diagrams, ensuring proper traveler wire connections, and avoiding common mistakes, you can achieve a seamless and reliable setup.
For a detailed visual guide on wiring configurations using NM cable, check out this helpful resource: 4-Way Switch Wiring Using NM Cable. This external reference provides excellent supplementary diagrams and explanations to complement our guide.
🔑 Key Takeaways:
✔ 3-way switches start and end the circuit, while 4-way switches add intermediate control points.
✔ Proper traveler wire connections (red & white) are critical for functionality.
✔ Always test the circuit before finalizing installation to avoid wiring errors.
✔ Consider smart switches or dimmers for advanced lighting control.
Whether you’re wiring a long hallway, staircase, or large room, this setup ensures convenience and efficiency. If you encounter challenges, consulting a licensed electrician ensures safety and compliance with electrical codes.
🔧 Ready to upgrade your lighting control? Follow this guide and the linked resource for a flawless 4-way 3-way switch installation! 💡🚀
❓ Frequently Asked Questions (FAQs)
1. Can I use a 4-way switch without 3-way switches?
No, a 4-way switch must be installed between two 3-way switches to function correctly.
2. How many 4-way switches can I add in a circuit?
You can add multiple 4-way switches between two 3-way switches for extended control.
3. What wire gauge should I use for 4-way 3-way wiring?
Use 14/3 or 12/3 NM cable, depending on circuit amperage (15A or 20A).
4. Why is my 4-way switch not working?
Check traveler wire connections and ensure the common terminal is correctly wired.
5. Can I install a dimmer in a 4-way 3-way setup?
Yes, but only one 3-way dimmer should be used—avoid dimming on both ends.
By following this guide, you’ll achieve a seamless 4-way 3-way light switch wiring setup with optimal performance. 🚀
