Installing a 3 way switch wiring system allows you to control a single light from two different locations—perfect for staircases, hallways, and large rooms. Whether you’re a DIY enthusiast or an electrician, this guide provides step-by-step instructions, wiring diagrams, and expert tips to ensure a safe and efficient installation.
Here’s a quick comparison of 3 way switch wiring vs. standard switches:
| Feature | 3 Way Switch | Single-Pole Switch |
|---|---|---|
| Number of Switches | 2 | 1 |
| Terminals | 3 (COM, T1, T2) | 2 (Line, Load) |
| Control Points | 2 locations | 1 location |
| Wiring Complexity | Moderate | Simple |
⚡ Key Components for 3 Way Switch Wiring
- Two 3-way switches
- 14/3 or 12/3 NM cable (includes black, red, white, and ground wires)
- Light fixture
- Electrical box
- Wire connectors

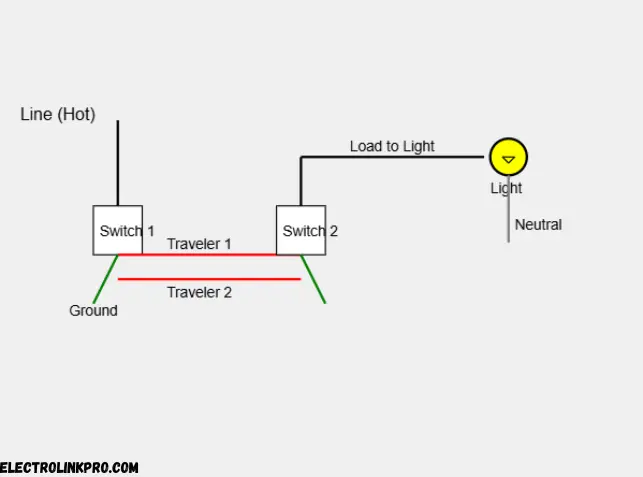

Wiring Diagram
Here is complete wiring diagram of 3 way switch wiring
📐 Step-by-Step 3 Way Switch Wiring Installation

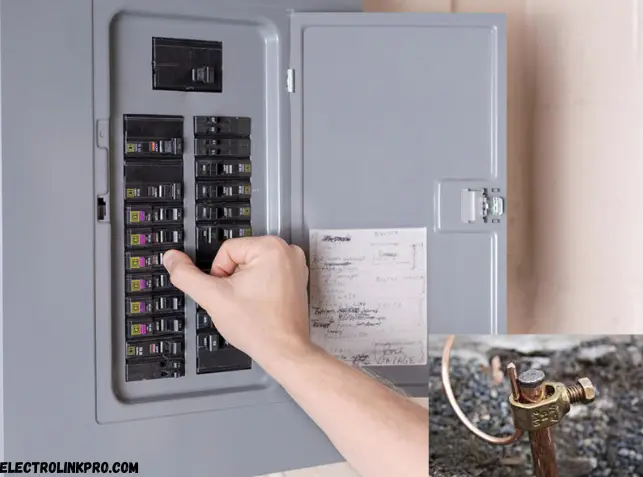

1. Turn Off Power & Prepare Wires
✅ Shut off the circuit breaker to avoid electrical hazards.
✅ Run 14/3 or 12/3 cable between the two switch locations and the light.
✅ Strip wires for proper connections.
2. Connect the First 3 Way Switch
- Black (Hot) wire → Common terminal (COM).
- Red & White (Travelers) → T1 & T2 terminals.
- Ground wire → Green screw.
3. Wire the Second 3 Way Switch
- Black wire (to light) → Common terminal (COM).
- Red & White wires → Traveler terminals (T1 & T2).
- Ground wire → Green screw.
4. Connect the Light Fixture
- Black wire (from switch) → Light’s hot terminal.
- White wire (neutral) → Light’s neutral wire.
- Ground wire → Fixture’s ground.
5. Test the 3 Way Switch Wiring
🔌 Restore power and test both switches to ensure proper functionality.
🔍 Common 3 Way Switch Wiring Diagrams
🔹 Standard 3 Way Switch Wiring (Power at First Switch)
Power Source → Switch 1 (COM) → Travelers → Switch 2 (COM) → Light 🔹 Power at Light Fixture Setup
Power → Light → Switch 1 (COM) → Travelers → Switch 2 (COM) → Light 🔹 Power at Second Switch Configuration
Power → Switch 2 (COM) → Travelers → Switch 1 (COM) → Light ⚠️ Troubleshooting 3 Way Switch Wiring Issues
❌ Light Doesn’t Turn On
- Check circuit breaker.
- Verify traveler wire connections.
- Ensure proper grounding.
❌ Only One Switch Works
- Re-examine traveler wire connections.
- Test switch terminals with a multimeter.
❌ Flickering Lights
- Tighten wire connections.
- Inspect for loose terminals.
🔌 Advanced Tips for 3 Way Switch Wiring
- Use a voltage tester to confirm live wires.
- Label wires before disconnecting old switches.
- Install smart 3-way switches for remote control.
🔌 Conclusion:
By now, you’ve gained a comprehensive understanding of 3-way switch wiring, from fundamental concepts to advanced installation techniques. This guide has equipped you with the knowledge to confidently control lighting from multiple locations—whether for staircases, hallways, or large rooms.
Proper 3-way switch wiring not only enhances convenience but also improves your home’s functionality and energy efficiency. Remember, the key to success lies in meticulous planning, correct wire connections (especially the common (COM) and traveler (T1/T2) terminals), and thorough testing before finalizing the setup. Always prioritize safety by shutting off power at the breaker and using a voltage tester to confirm circuits are dead before working.
❓ Frequently Asked Questions (FAQs)
1. Can I use a dimmer with 3 way switch wiring?
Yes, but you need a 3-way compatible dimmer switch—replace only one of the switches.
2. What’s the difference between 3 way and 4 way switch wiring?
A 3 way switch wiring controls lights from two locations, while a 4 way switch allows control from three or more locations.
3. Why are my 3 way switches not working?
Check for loose traveler wires, incorrect terminal connections, or a tripped breaker.
4. Can I install a 3 way switch with only two wires?
No, 3 way switch wiring requires a 3-wire cable (plus ground) for traveler connections.
5. Are smart switches compatible with 3 way wiring?
Yes, but ensure the smart switch supports 3-way setups—follow manufacturer instructions.
By mastering 3 way switch wiring, you can upgrade your home’s lighting with ease! 🚀💡
