Working on 3 way dimmer switch wiring can seem intimidating, but with the right information and a step-by-step approach, you can complete it safely and efficiently. Whether you’re replacing a standard 3-way switch with a dimmer or installing a completely new setup, this guide provides comprehensive instructions, expert tips, and safety precautions to ensure success.
Below, you’ll find all key wiring details presented upfront in a table, followed by an in-depth breakdown of every part of the process. By the end, you’ll not only understand 3 way dimmer switch wiring, but also how to troubleshoot and customize it for different lighting systems.
Quick Wiring Reference for 3 Way Dimmer Switch ⚡
| Component | Description / Function |
|---|---|
| Dimmer switch type | Use a 3-way dimmer designed for two-location control. One dimmer replaces one of the existing 3-way switches. |
| Common terminal (COM) | Black screw where the line (hot feed) or switched leg connects. |
| Traveler terminals | Brass screws for the two traveler wires running between both switches. |
| Ground wire | Bare or green wire for grounding to both switch boxes. |
| Neutral connection | Typically unused at the switch itself, but required in LED dimmer models. Check if your box has neutral wires bundled together. |
| Load wire | Carries power from switch to light fixture. |
| Power source | Line (incoming power) from panel must connect at either switch box—identify with a tester before wiring. |
| Placement rule | Only one dimmer in a 3-way circuit. The other switch must remain standard (on/off). |
| LED compatibility | If using LED lights, ensure the dimmer is rated as LED-compatible to prevent flicker or buzzing. |
| Voltage check | Always verify power is off using a non-contact tester before touching wires. |
Planning the 3 Way Dimmer Switch Wiring Setup 🔧
Before you even touch the wires, plan the wiring arrangement to avoid confusion. 3 way dimmer switch wiring works differently from a single-pole dimmer because two switches control the same light.
- Identify which box has the line (power in) and which has the load (power out to the light).
- Determine which switch you will replace with the dimmer.
- Ensure you have a 3-way dimmer switch (not a single-pole dimmer).
- Gather tools: screwdriver, non-contact voltage tester, wire connectors, needle-nose pliers, and electrical tape.

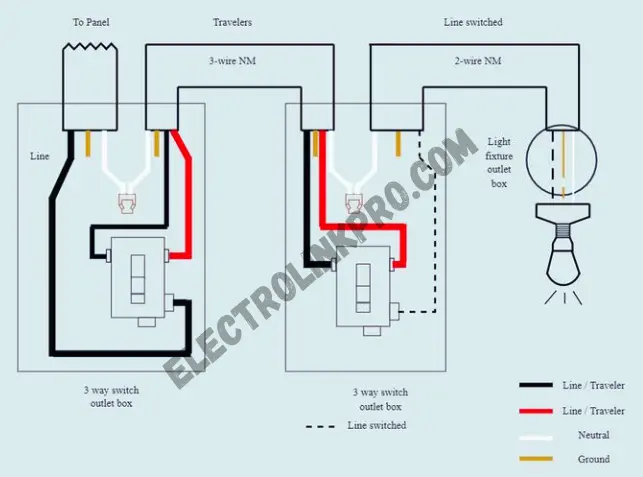

Wiring diagram:
Power Source → Switch 1 (standard 3-way)
↕ (two traveler wires)
Switch 2 (3-way dimmer) → Load (light fixture)
- Black (common) carries either the line or load.
- Red travelers carry the switching paths.
- Green ground ensures safety.
Step-by-Step 3 Way Dimmer Switch Wiring Instructions 🛠️
1. Turn Off Power at the Breaker 🚨
- Locate the breaker panel and switch off the circuit controlling your lights.
- Verify power is off with a tester at both switch boxes.
2. Remove the Existing Switches
Unscrew faceplates and pull switches out from the wall box.
Label the common wire (connected to the black screw) before disconnecting. This step is crucial for correct 3 way dimmer switch wiring.
Disconnect traveler wires and ground wires carefully.
3. Prepare the Dimmer Switch
- A 3-way dimmer switch will have three leads (or terminals): one common (black), two traveler leads (usually red), plus a ground wire.
- Match the wires in your wall box to the dimmer’s leads as follows:
- Common → Black lead on dimmer
- Travelers → Red leads on dimmer
- Ground → Green or bare wire
4. Connect Wires to the New Dimmer
- Use wire connectors to make solid, secure connections.
- Wrap electrical tape around exposed terminals for safety.
- If your dimmer has screw terminals, tighten them firmly without overtightening.
5. Install Back in the Wall Box
- Carefully fold wires back into the box, avoiding sharp bends.
- Mount the dimmer using its provided screws and install the faceplate.
6. Reinstall the Other 3-Way Switch
- Ensure the common wire goes to the black screw.
- Connect traveler wires to brass screws.
- Ground it properly to the box.
7. Test the System
- Turn the breaker back on.
- Operate both switches to verify smooth dimming and full control from both locations.
Advanced Configurations and Troubleshooting 🔍
Using LED Lights with a 3 Way Dimmer
- Make sure your dimmer supports low-wattage LED bulbs.
- If lights flicker, try replacing with dimmable LEDs rated for your specific dimmer model.
- Check for a neutral wire if your LED dimmer requires one.
Common Wiring Mistakes to Avoid
- Swapping travelers with common – This prevents proper switching.
- Installing dimmers on both ends – Only one dimmer should be in a 3-way circuit.
- Loose ground connection – Can cause intermittent failures.
How to Fix a Non-Working 3 Way Dimmer
- Verify power at both switches using a tester.
- Check traveler continuity if the circuit doesn’t function from both locations.
- Confirm dimmer load rating matches your lighting fixture.
Related Topics to 3 Way Dimmer Switch Wiring 🔗
- 4-way dimmer switch wiring (for three or more control points)
- Single-pole dimmer installation (simpler alternative for one switch control)
- Smart dimmer switches with app or voice control
- Replacing incandescent dimmers with LED-compatible models
- Low-voltage lighting dimmers for specialty lighting systems
Including these related areas ensures 3 way dimmer switch wiring content remains comprehensive and semantically optimized.
Recap of Key Steps in 3 Way Dimmer Switch Wiring 📝
- Turn off the breaker.
- Label wires before removal.
- Install one dimmer only, the other switch remains standard.
- Connect black to common, red to travelers, ground to green.
- Secure all connections, test thoroughly.
By following these steps, 3 way dimmer switch wiring becomes straightforward and safe.
Conclusion:
Upgrading your lighting control with a 3 way dimmer switch wiring setup allows flexible brightness adjustment from two locations while maintaining safety and code compliance. With proper planning, correct identification of wires, and LED-compatible components, you’ll enjoy smooth dimming without flicker or buzzing.
Always remember: one dimmer per circuit, accurate wire labeling, and secure ground connections make all the difference. If uncertain at any point, consult a licensed electrician.
Frequently Asked Questions 🤔
Q1: Can I install dimmers on both 3-way switches?
No. Only one dimmer should be installed; the other switch must remain standard.
Q2: Do I need a neutral wire for 3 way dimmer switch wiring?
Not always, but LED-compatible dimmers may require it. Check your model specifications.
Q3: What happens if I mix up traveler wires?
The switch will still work, but the control order may be reversed.
Q4: Why is my dimmer buzzing?
It’s often caused by using non-dimmable bulbs or an incompatible dimmer.
Q5: Is 3 way dimmer switch wiring safe for LED lights?
Yes, if you choose an LED-rated dimmer designed for low wattage.
